Onboard

Passenger information displays for rolling stock, metro trains, trams, buses, and onboard communication.

Onboard

LCD Onboard Visual Passenger Information System (VPIS)

This “Visual Passenger Information System (VPIS)” is a display system located at the upper train window, simultaneously providing information inwards to onboard passengers and outwards to passengers on the platform with following features:

1. Display Inwards and Outwards at the Same Time	Compared to LED scrolling banners, passengers can obtain much more information in a quicker way with LCD. For example, onboard passengers can watch advertisements and notice real time status of the natural disaster, while passengers on the platform can identify train number, destination, and train type at the same time. With the help of this display system, railway operators can provide better experience to passengers.
2. Brightness	SEC offers an option of adopting sunlight readable screen and light sensors, so outdoor passengers can watch in comfort no matter at noon and in the evening. With the help of this display system, railway operators can provide better experience to passengers and save energy expense.
3. Temperture	SEC offers an option of adopting temperture sensors, the display system can automatically start cooling procedures to prevent heat damage. With the help of this display system, railway operators can save repair expense.
4. Energy Saving	The display system can automatically turn off the outside screen after leaving a station and turn on the outside screen before arriving another station. With the help of this display system, railway operators can save energy expense.

Model Name	DBS-4833A
Display Area	1209.6(W) x 225.54(H)
Optimum Resolution	1920 x 357
Contrast Ratio	3500 : 1
Brightness	1000 nit (Typ.)
Aspect Ratio	16 : 3
Video Input	VGA / DVI / HDMI in / USB(2.0)in
Dimensions(mm)	1249.8(W) x 264.9(H) x 131(D) mm

Feel free to contact us (sales@shine-epoch.com.tw) if you are looking for a tailor-made "Onboard Dual side Visual Passenger Information System (VPIS)" with industrial grade.

Onboard

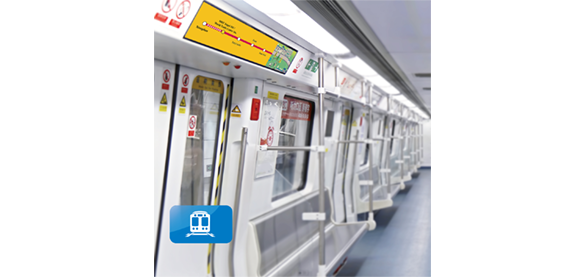

LCD PIS over vehicle doors

This PIS is a display system located above train doors, reminding passengers to get off the train at the right station with following features:

1. Sightseeing Advertisement	For example, passengers with an appetite of sightseeing can be reminded to take off the train for further shopping. With the help of this display system, railway operators can provide better experience to passengers and increase advertisements sales.
2. More Information at the Same Time	Compared to LED scrolling banners, passengers can obtain much more information in a quicker way with LCD. For example, the display system can provide next station and real time information of a natural disaster at the same time. With the help of this display system, railway operators can provide better experience to passengers.
3. Tempered Glass	SEC offers an option of adopting reinforced glass to protect the display system, therefore railway operators can save some repair expense in case of protest demostraion.
4. Internal Power Design	SEC offers an option of adopting internal power design to fit narrow space over vehicle doors, therefore system integrators can save extra engineering expense.

Model Name	EWM-2832EV
Display Area	698.4(W) x 129.86(H)
Optimum Resolution	1920 x 357
Contrast Ratio	3000 : 1
Brightness	700 nit (Typ.)
Aspect Ratio	16 : 3
Video Input	DVI
Dimensions(mm)	734(W) x 165(H) x 72(D) mm

Feel free to contact us (sales@shine-epoch.com.tw) if you are looking for a tailor-made "Station Indicator over vehicle doors" with industrial grade..

Onboard

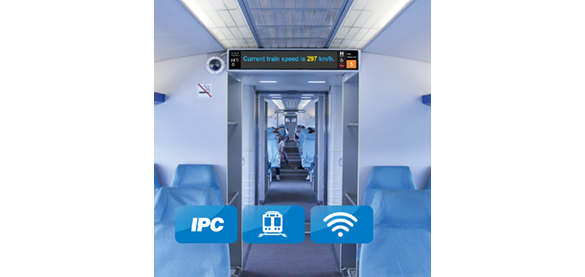

LCD Onboard Travel Information Display over gangway

This “Travel Information Display” is a display system located over gangway, providing information to passengers with following features: ：

1. More Information at the Same Time	Compared to LED scrolling banners, passengers can obtain much more information in a quicker way. For example, the display system can provide Transfer Information and advertisements to passengers at the same time. With the help of this display system, railway operators can provide better experience to passengers.
2. Onboard Service	For example, passengers who want to buy drinks and snacks can be reminded and prepared, therefore increases sales of onboard service for railway operators. With the help of this display system, railway operators can provide better experience to passengers.
3. Sightseeing Advertisements	For example, passengers with an appetite of sightseeing can be reminded to book hotels, restaurants or other service before they arriving their destination, therefore increases sales of advertisers. With the help of this display system, railway operators can provide better experience to passengers and increase advertisement sales.
4. Internal Power Design	SEC offers an option of adopting internal power design to fit narrow space over vehicle gangway, therefore system integrators can save extra engineering expense.

Model Name	EWC-4131AV
Display Area	1018(W) x 185(H)
Optimum Resolution	1920 x 348
Contrast Ratio	4000 : 1
Brightness	400 nit (Typ.)
Aspect Ratio	16 : 3
Video Input	USB / HDMI / RS485 / WiFi
Dimensions(mm)	1359(W) x 225(H) x 88(D) mm

Feel free to contact us (sales@shine-epoch.com.tw) if you are looking for a tailor-made "Onboard Travel Information Display over gangway" with industrial grade.
